How To Interface Humidity Sensor with 8051 Microcontroller (AT89C51)

Physical quantities like Humidity, temperature, pressure etc. are monitored to get information about the environmental conditions. Various sensors are being used to measure these quantities in analog form. This article demonstrates the principle and operation of interfacing the humidity sensor with 8051 microcontroller (AT89C51). The humidity sensor is widely used in applications like weather forecast, air conditioner, Hygrometers etc.

Main Parts:

AT89C51 Microcontroller

AT89C51 is an 8-bit microcontroller and belongs to Atmel's 8051 family. AT89C51 has 4KB of Flash programmable and erasable read only memory (PEROM) and 128 bytes of RAM. It can be erased and program to..

LCD

LCD (Liquid Crystal Display) screen is an electronic display module and find a wide range of applications. A 16x2 LCD display is very basic module and is very commonly used in various devices and circuits. These modules are preferred over seven segments...

ADC0804

Analog to digital converters find huge application as an intermediate device to convert the signals from analog to digital form. These digital signals are used for further processing by the digital processors. Various sensors like temperature, pressure, force etc. convert the physical characteristics into electrical signals that are analog in nature....

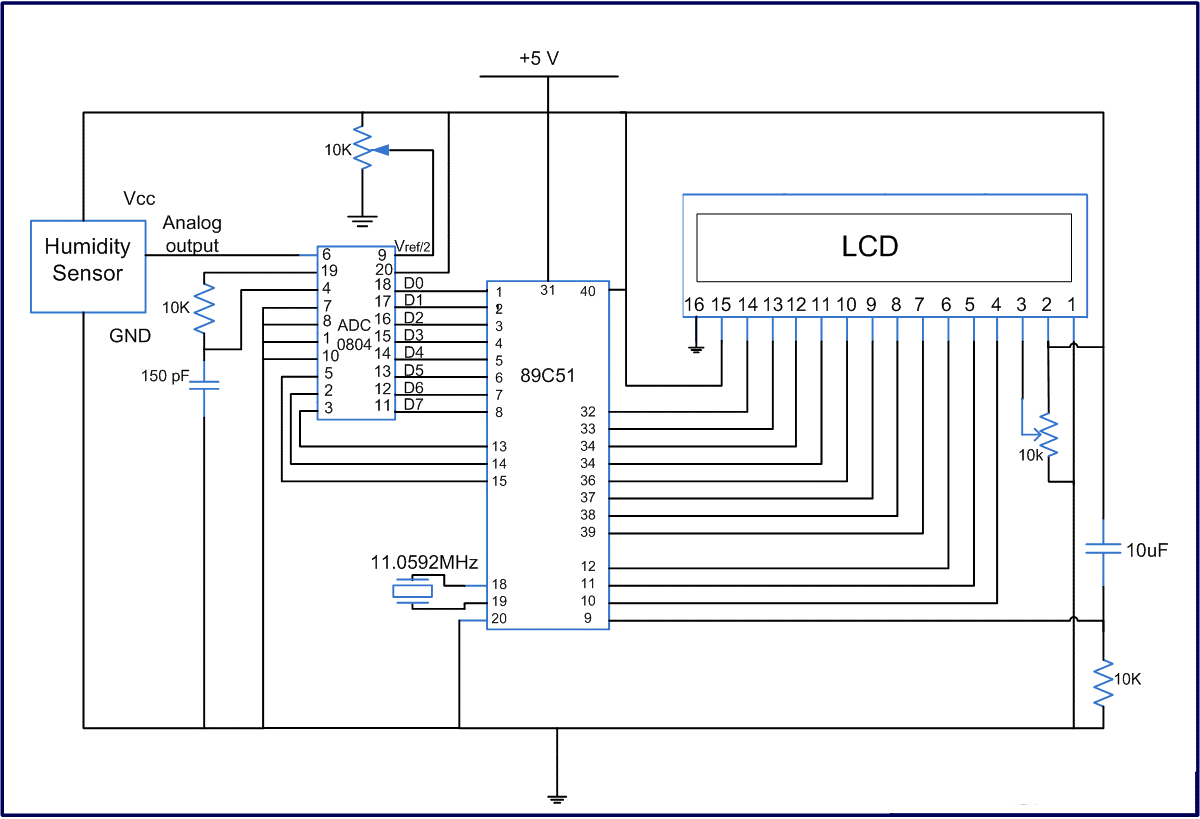

Circuit Diagram:
